Ballscrew Upgrade – How To Make Your Own CNC Milling Machine

Written By: Bill Griggs - Oct• 31•14

Ballscrew Upgrade

How To Make Your Own CNC Milling Machine – Part 3

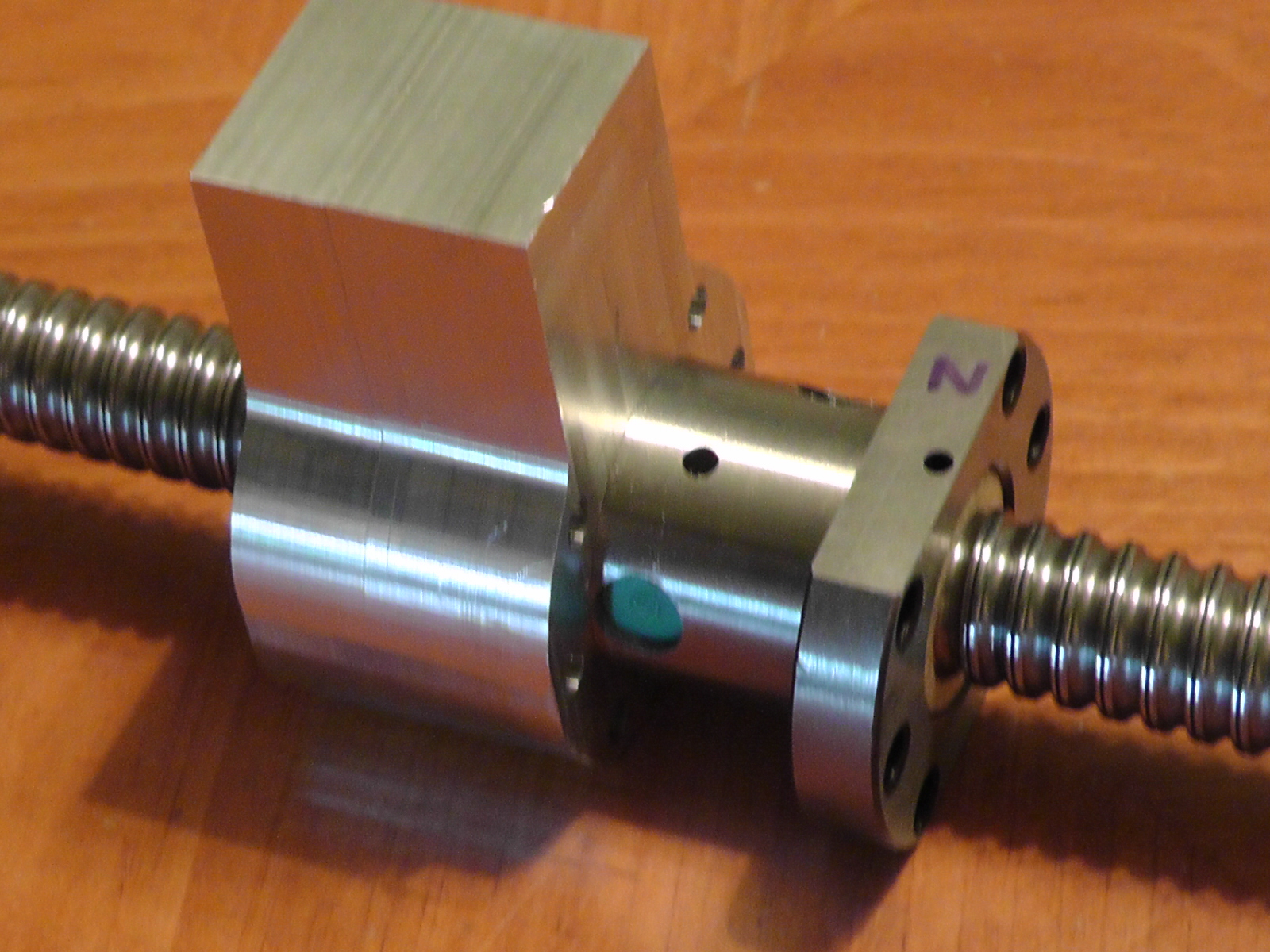

ballscrew mount #cnc

One of the first options I decided to Make to my CNC Milling Machine was a Ballscrew upgrade. I decided to upgrade the Acme Thread Leadscrews to BallScrews. A Ballscrew (sometimes spelled Ball Screw) is a type of linear actuator that translates rotary motion into linear motion. It uses ball bearing in a helical groove to transfer the motion with very little friction. Because of this low friction fit, ballscrews have less backlash or slop than Acme leadscrews and allow you greater repeatability.

#ballscrew

Ballscrews use ball bearings in a helical groove to convert rotary motion to linear motion.

Where to get them?

Before we get started, I just wanted to say that replacing the leadscrews with ballscrews is a completely optional upgrade. The supplied leadscrews are very good for manual machining and will also work well as a CNC mill. However, ballscrews are more accurate and are designed to have less backlash than a leadscrew is capable of maintaining. Adding the three ballscrews to the machine costs about $200 dollars. I got mine from a seller on ebay: Linearmotionbearings2008 Ebay Store. The nice thing about getting the ballscrew from the ebay seller was that he offers a machining service and will machine the ends of the ballscrews to your specifications. Since he has done this machining many times he already knew the sizes needed, which made the purchase even easier.

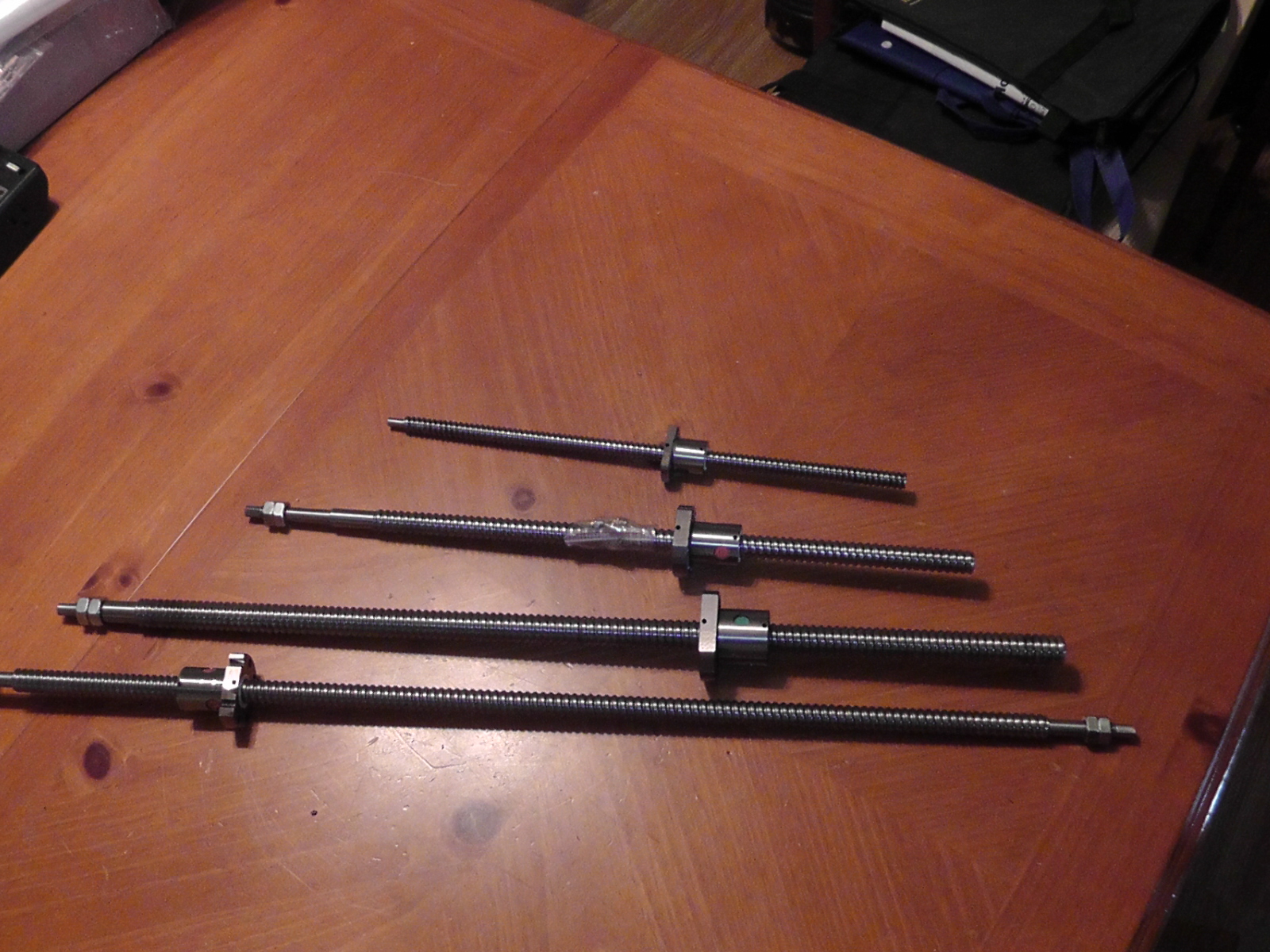

Ballscrews come in a variety of sizes.

Ballscrews come in a variety of sizes.

There are also several other sources for ballscrews including Roton,  NSK and Nook Industries. There are also a variety of sources to order ballscrews online. Roton Products Inc. http://roton.com  is one source I have used in the past. Roton provides good service and reasonable prices. Another good source is Automation Technologies Inc, http://www.automationtechnologiesinc.com. This company also offers many other parts to build CNC machines.

 CAD/CAM

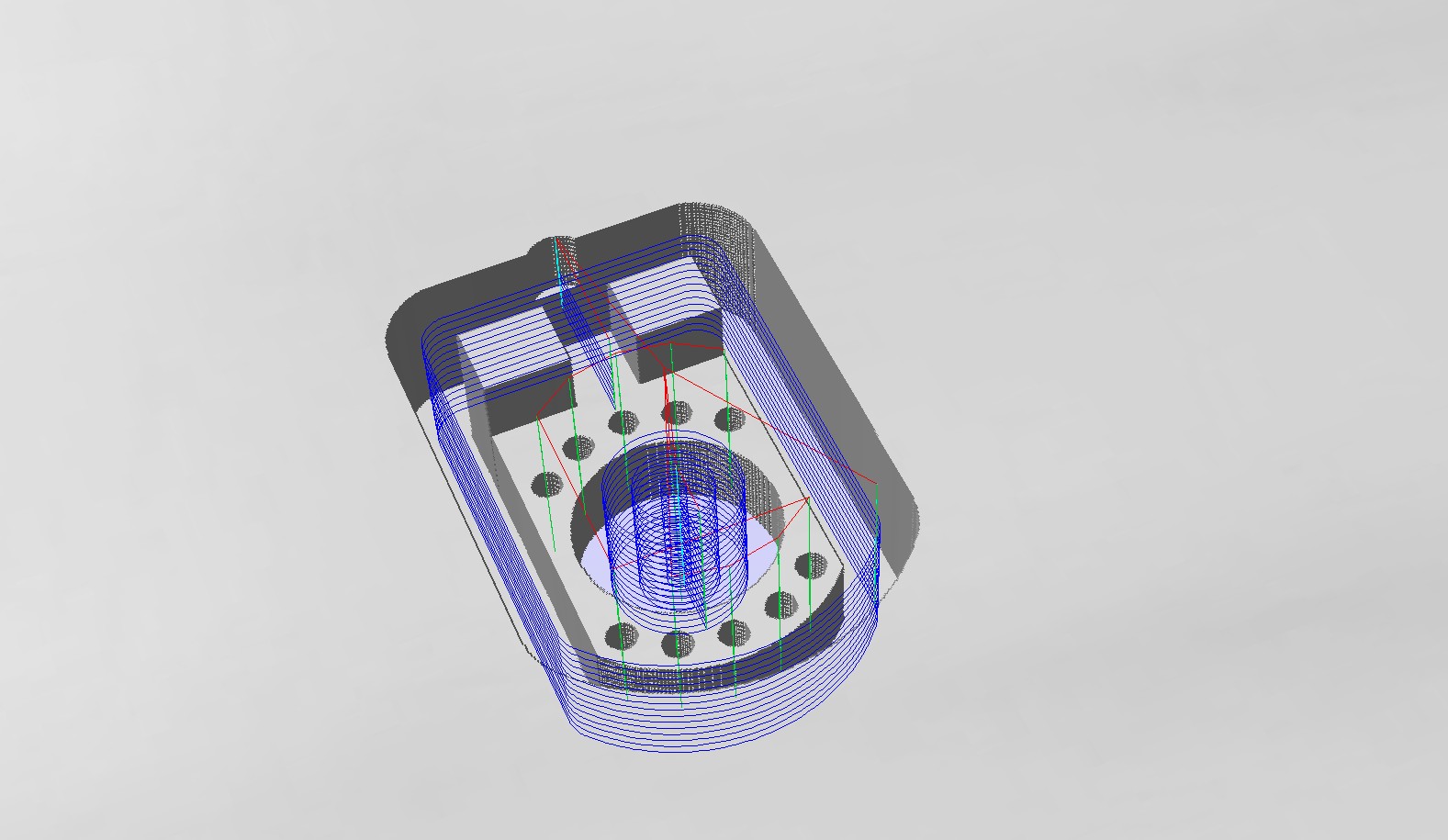

tool path

I used Vectric Aspire to create the gcode.

I started with a CAD drawing from the Hossmachine DVD as the basis for my Ballscrew mounts but I made some modifications which I hope will be improvements. I used Vectric Aspire to convert the DXF drawings to gcode. Then on the Z axis ballscrew mount I added some curved surfaces to match the shape of the Ball nut. The ballscrew mounts replace the leadscrew mounts on the Grizzly G0704 milling machine. They are designed to slip over the edge of the Ballscrew nut and bolt onto the flange with 1/4-20 screws. The previous version was easier to make but I felt the curves were cleaner and used less material.

On the X axis ballscrew I added a slot to allow the Zerk fitting (for lubrication) to have easier access through the top of the cross slide. I did not make any changes to the Y axis mount but I may make a slightly different version when I see how thing fit.

Making a CNC Milling machine requires a lot of metal working. Most people will use a manual milling machine to do the metal work. I was lucky to have access to a CNC machining center so that is how I made my ballscrew mounts.   Using the machining center was faster and I believe gave me better parts.  I machined the parts from T6061 aluminum stock.

 Machining the X & Y Mounts

x axis ballscrew

X axis ballscrew mount has a slot for the Zerk fitting.

The picture on the right shows the X and Y mounts just after I machined them from 7/8″ aluminum stock. The parts still need to be tapped and deburred. Tabs were used to hold the parts in place in the stock while machining. I cut the parts free later with a metal cutting band saw but you could use a hack saw.

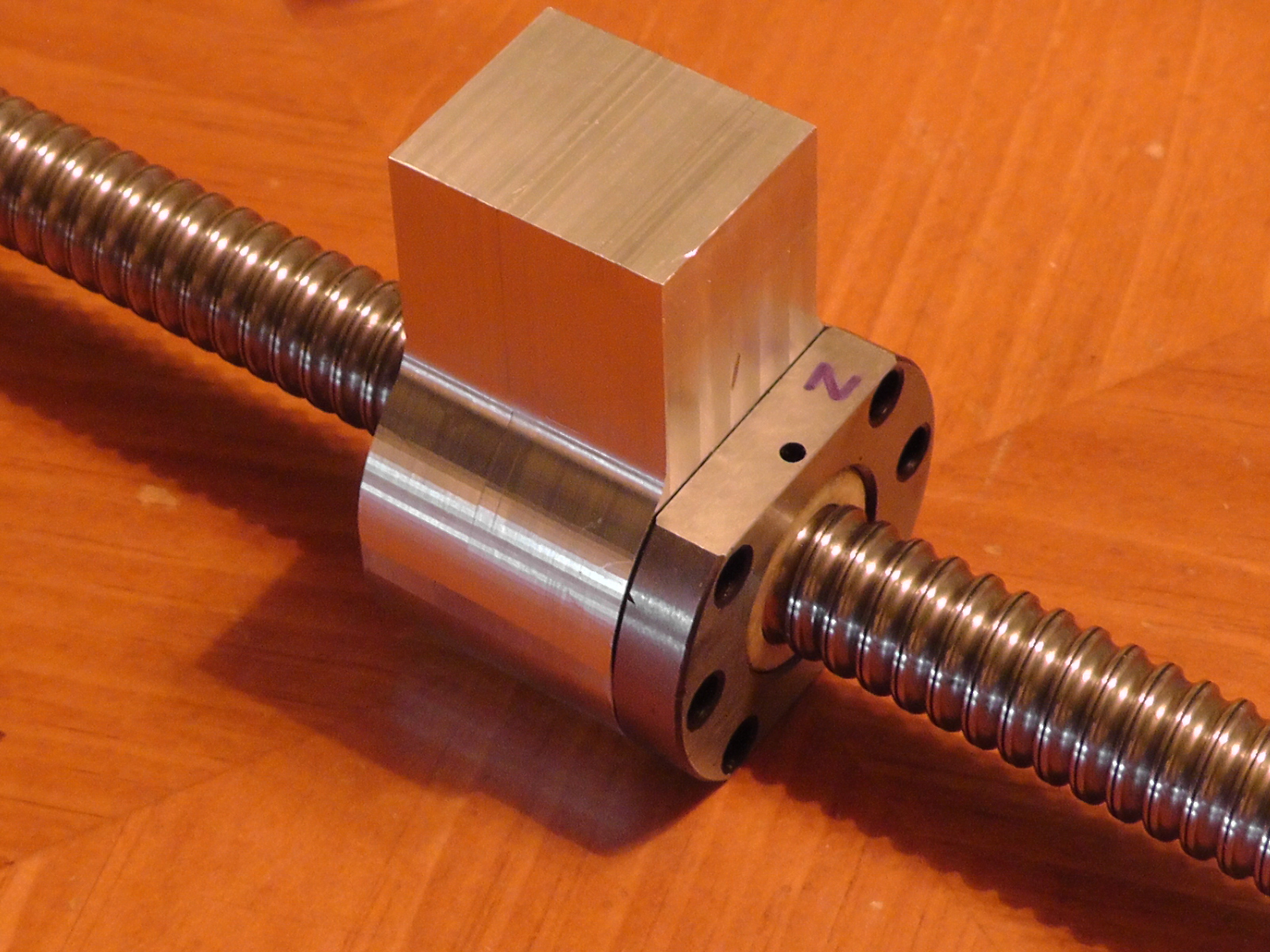

z axis

Good fit

Learn More?

If you would like more information about making a CNC milling Machine, why not subscribe to our free newsletter?
Join our free newsletter







ballscrew upgrade

Ballscrew Upgrade.



Bundle

End Mill Set, 20 pieces 2 & 4 Flute, TiN coated...
Machinist's Thin Parallel Bar Set - 10 Pair 1/8"...
The CNC Cookbook: An Introduction to the Creation...
Machine Shop Trade Secrets
R8 Rotating Collet Holder Set
CNC Trade Secrets: A Guide to CNC Machine Shop...
CNC Programming Handbook, Third Edition
Was $441.49 Buy together now for $404.47 You save $37.02 (8%)
Price Last Updated: 3:33am, 13th December 2017 (more info)

Confirm options and continue...

http://www.amazon.com/gp/aws/cart/add.html?AssociateTag=cncbundles-20&SubscriptionId=AKIAJPQKINOYT775JXIQ&ASIN.1=B0000DD0D2&Quantity.1=1&ASIN.2=B002YPHSJK&Quantity.2=1&ASIN.3=B001RQTK9I&Quantity.3=1&ASIN.4=0982110308&Quantity.4=1&ASIN.5=0831134771&Quantity.5=1&ASIN.6=B006533TD6&Quantity.6=1&ASIN.7=0831135026&Quantity.7=1&ASIN.8=0831133473&Quantity.8=1

You can follow any responses to this entry through the RSS 2.0 feed. You can leave a response, or trackback from your own site.

2 Comments

  1. Fernie says:

    what ballscrews did you end up purchasing? do you have a model number? please email me.

  2. Bill Griggs says:

    There is no easy answer for that question. There are several different stpper motor configurations and each requires a different ballscrew end. The one shown in the picture are for direct connection. However I switched to Rear connection on the Y axis which required a longer journal at the end of the ballscrew. I used RM1605 Ballscrews on X & Y and a RM2005 on the Z axis.
